54”Hood Liner/Hood Insert + 1260CFM Internal Motor(8”Round Duct)

SKU CT-Liner-54-Internal
Original price $1,599.00 - Original price $1,599.00
Original price
$1,599.00
$1,599.00 - $1,599.00
Current price $1,599.00

Rangehoodmaster 54-inch Hood liner + Internal Motor Specifications

It makes a perfect complement to any custom built range hood cover that are made from copper,wood,plaster,etc.You can also mount it inside an 18 inch cabinet.

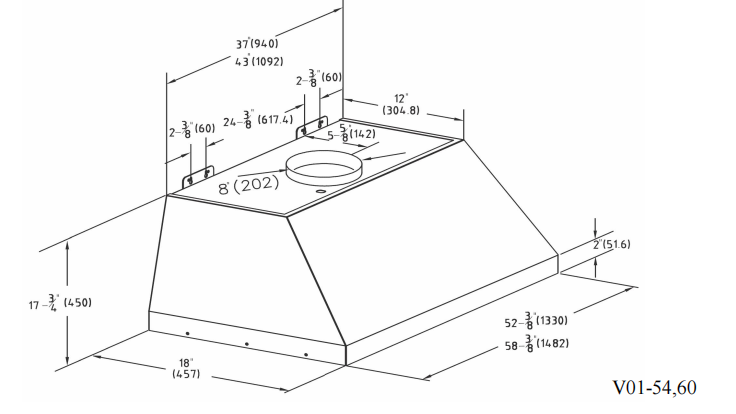

  • Liner Product Dimensions(L x W x H): 52-3/8 in x 18 in x 17-3/5 in.
  • Body Design : Elegant design with no visible welded seams
  • Number of Motor: Single motors
  • Airflow: 400CFM/800CFM/960CFM/1260CFM to remove unwanted smell and grease
  • Vent Pipe Opening: 8″round
  • Material: Commercial grade SUS304 / 20 gauge
  • Control Type: Push button to control fan speed,light,etc
  • Fan speed:4 level, low, medium & high
  • Filtration Type: stainless steel 304 baffle filter (reusable, dishwasher-friendly)
  • Power Rating: 120V / 60Hz
  • Noise Level: 1.8Sone(35dB)/5.5Sone(53dB)/ 7.0Sone(67dB)8.5Sone(70dB)
  • Illumination: 4 x 3W LED lights

Wattage: 240W (delayed power auto shut off)

Download CT-Liner-54-Internal specs and manuals.

Hood Liner with Internal Motor Specification

Hood Insert Size30" & 36"42" & 48"54" & 60"
Vent Material
Stainles SteelStainless SteelStainless Steel
Number Of MotorsSingle MotorDual MotorsDual Motors
Fan TypeHood Liner+ Internal MotorHood Liner+ Internal MotorHood Liner+ Internal Motor
Air Flow280 CFM
390 CFM
520 CFM
610 CFM
385 CFM
490 CFM
615 CFM
960 CFM
395 CFM
800 CFM
1200 CFM
Control Type4 Fan Speed4 Fan Speed3 Fan Speed
Filtration TypeDishwasher Safe
Stainless Steel Baffle Filters
Dishwasher Safe
Stainless Steel Baffle Filters
Dishwasher Safe
Stainless Steel Baffle Filters
Power Rating120V/60Hz120V/60Hz120V/60Hz
Wattage120W240W240W
Duct6" Round8" Round10" Round
Illumination2 X 3W LED Lights4 X 3W LED Lights3 X 3W LED Lights
