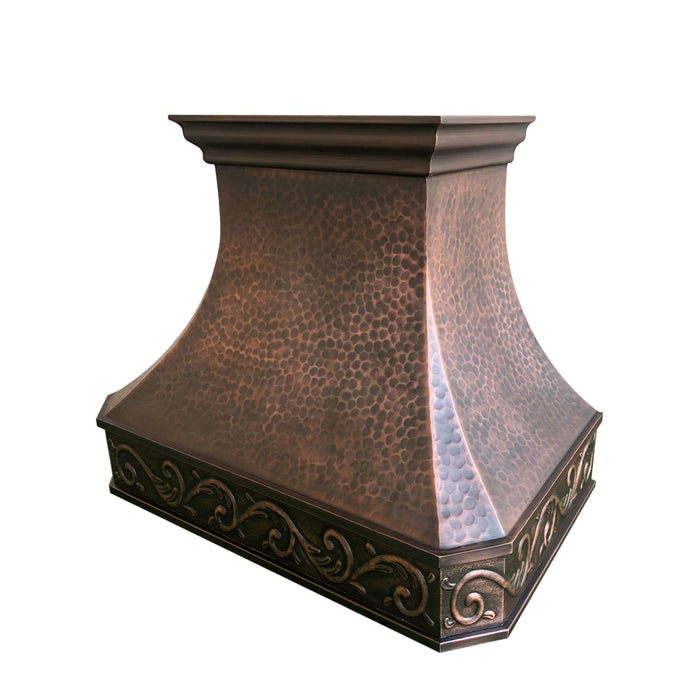

Custom Antique Copper Kitchen Hood in Medium Patina for Gary

If you want to customize the size of your range hood, please contact us prior to placing your order. We will reply with drawing within 24 hours. (Please feel free to email us at info@rangehoodmaster.com.

Wall-mounted range hood

• Hood Width: Wall-mounted range hoods should be at least as wide as the range.
• Hood Height: A typical mounting height for wall mounted hoods is between 30" and 36" above your cooktop above the cooking surface.
• Hood Height = Ceiling Height - Stove Height - 33"or 36"
• Depth: recommend the same or less than your cooktop depth.

Island-mounted range hood

• Hood Width: Island-mounted range hoods are recommended to be 3"-6" wider than the cooking area.
• Hood Height: The recommended range of installation height for island mounted range hood is about between 30" and 36" off the cook top.
• Hood Height = Ceiling Height - Stove Height - 33"or 36"

Different Ventilation Systems for Different need.

Hood Liner With Internal Motor

• Duct Size: 6" Round(30"/36" Inch); 8" Round(42"/48" Inch); 10" Round(54"/60" Inch)
• 30-48 Inch Insert CFM:280CFM,390CFM,520CFM,610CFM
• 54-60 Inch Insert CFM:1150CFM, 960CFM, 800 CFM or 400 CFM-(Code Compliant)
• Voltage: 120V

Hood Insert With Remote Blower

• Duct Size: 8” (30 & 36” widths) (42” & 48” widths)
• CFM: 466 CFM, 836 CFM or 1266 CFM
• Voltage: 120V

Hood Liner with A Ductless Conversion Kit

• Hood Liner with A Ductless Conversion Kit
• CFM: 395 CFM
• Voltage: 120V

• Internal: Generally recommended. An internal blower is located inside the vent hood. Easy to isntall, motor, liner and hood in one set, high CFM to better function. RHM vent noise is under 70dp
• Remote: the motor is located outside the house, either on the roof or on an outside wall. Lower noise while ask more complicate installation, space and higher budget!
• Ductless: Ductless, also called a recirculating range hood recirculate air through a filter to remove odors without ducting. Filtering and recycling air inside your kitchen. Recirculating hoods require regular filter changes to maximize performance.
